RS2423RP+

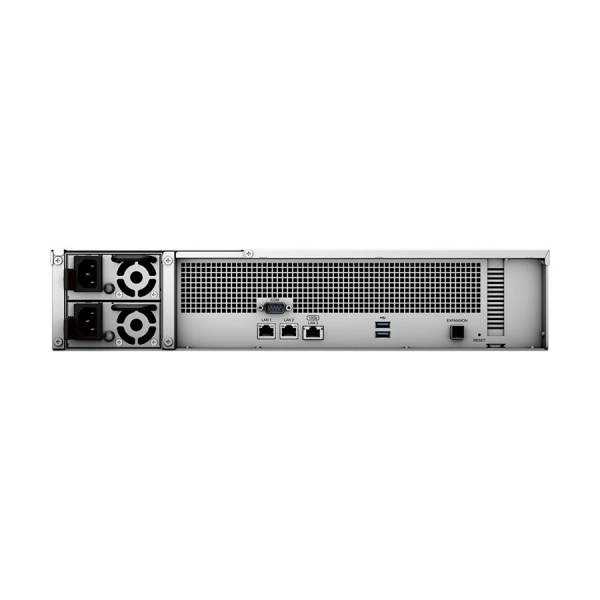

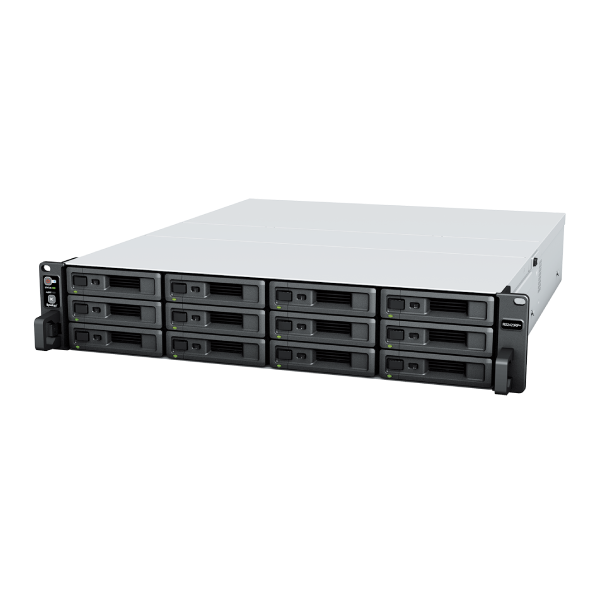

Synology RackStation RS2423RP+ 12-Bay NAS Storage

The Synology RackStation RS2423RP+ is a high-performance, 2U rackmount NAS designed to meet the growing demands of small and medium-sized businesses. It offers centralized data storage, efficient backup solutions, advanced data protection, and scalable expansion—all while delivering robust performance, reliability, and energy efficiency.

Key Specifications:

• Processor: AMD Ryzen V1780B Quad-Core 3.35 GHz

• Memory: 8GB DDR4 ECC RAM (expandable up to 32GB)

• Drive Bays: 12 x 3.5"/2.5" SATA HDD/SSD (hot-swappable)

• RAID Support: RAID 0, 1, 5, 6, 10, JBOD, Basic, Synology Hybrid RAID (SHR)

• Networking: 1 x 10GbE, 2 x 1GbE (supports Link Aggregation & Failover)

• Expansion: PCIe 3.0 x8/x4 slot for 1/10/25GbE NICs or SSD cache

• USB Ports: 2 x USB 3.2 Gen 1

• Expansion Unit Support: 1 x mini-SAS HD port for Synology RX1223RP

• Power Supply: Dual redundant power supplies

• Cooling: 3 x 60mm system fans

Performance Highlights:

• Sequential Read: Over 3500 MB/s

• Sequential Write: Over 1700 MB/s

• Random IOPS: Optimized with optional SSD caching

• Storage Expansion: Scalable up to 24 drives with RX1223RP

Built-in Data Protection & Reliability:

• Snapshot Replication: Near-instantaneous backups with version control (RPO as low as 5 minutes)

• Hyper Backup: Backup to local, remote, or cloud (Google Drive, Dropbox, Synology C2, etc.)

• Synology High Availability (SHA): Fast failover between two identical units for zero downtime

• RAID & Redundancy: Hot-swappable drive bays and dual power supplies ensure uptime and quick recovery

Virtualization & Hybrid Cloud Capabilities:

• Certified Support: VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack

• Storage Console: Native integration with VMware and Windows for direct management

• Container & VM Hosting: Host Docker containers and virtual machines via Synology Virtual Machine Manager

Collaboration & Communication Suite:

• Synology Drive: Cross-device file syncing, backup, and remote access

• Synology Office: Real-time collaboration on documents, spreadsheets, and presentations

• Synology Chat: Team messaging with encrypted private channels

• MailPlus: Secure, private email server for teams

• Synology Calendar: Shared calendar for team scheduling

• Hybrid Share: Combines on-prem storage with cloud syncing for multi-site collaboration

Surveillance Station Integration:

• Supports over 8,300+ camera models

• ONVIF compliance for broader compatibility

• Event-based alerts and cloud integration via C2 Surveillance

• Access from web, desktop, and mobile platforms

Why Choose the RS2423RP+?

• High-throughput performance for demanding workloads

• Excellent for backup, file sharing, virtualization, and surveillance

• Enterprise-grade features at SMB-friendly pricing

• Scalable, redundant, and energy-efficient architecture

• Runs on the award-winning Synology DSM OS for intuitive system management
