DS124
৳ 197
Key Features
CPU Model : Realtek RTD1619B
CPU Core : 4
System Memory : 1 GB DDR4 non-ECC
Drive Bays : 1
Share:
Specification
| CPU | ||
| CPU Model | Realtek RTD1619B | |
| CPU Quantity | 1 | |
| CPU Core | 4 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 1.7 GHz | |
| Memory | ||
| System Memory | 1 GB DDR4 non-ECC | |
| Notes | Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identica | |
| Storage | ||
| Drive Bays | 1 | |
| Compatible Drive Type | 3.5" SATA HDD; 2.5" SATA SSD (with optional 2.5" Disk Holder) | |
| Hot Swappable Drive | - | |
| Notes | "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. | |
| External Ports | ||
| RJ-45 1GbE LAN Port | 1 | |
| USB 3.2 Gen 1 Port | 2 | |
| Notes | This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019. | |
| Appearance | ||
| Weight | 0.7 kg | |
| Size (Height x Width x Depth) | 166 mm x 71 mm x 224 mm | |
| Others | ||
| System Fan | 60 mm x 60 mm x 1 pcs | |
| Noise Level | 19.0 dB(A) | |
| Power Consumption | 10.69 watts (Access); 3.44 watts (HDD Hibernation) | |
| Fan Speed Mode | Full-Speed Mode; Cool Mode; Quiet Mode; Low-power Mode | |
| Power Supply Unit / Adapter | 36 watts | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| British Thermal Unit | 36.50 BTU/hr (Access); 11.75 BTU/hr (HDD Hibernation) | |
| Notes | For more information on how power consumption is measured, refer to this article. Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m dis | |
| Temperature | ||
| Relative Humidity | 5% to 95% RH | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) | |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Certification | ||
| FCC | Yes | |
| CE | Yes | |
| BSMI | Yes | |
| VCCI | Yes | |
| RCM | Yes | |
| UKCA | Yes | |
| EAC | Yes | |
| CCC | Yes | |
| KC | Yes | |
| Warranty | ||
| Standard | 2-years hardware warranty, extendable to 2 years with Extended Warranty Plus | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) Extended Warranty Plus is only available in Europe and North America. EW201/EW202 is only available in Asia, Africa, and Oceania. For exact availability inf | |
| Environment | ||
| RoHS Compliant | Yes | |
| Packaging Content | ||
| Main Unit | 1 | |
| Accessory Pack | 1 | |
| AC Power Adapter | 1 | |
| RJ-45 LAN Cable | 1 | |
| Quick Installation Guide | 1 | |
| Optional Accessories | ||
| Plus Series 3.5" SATA HDD | HAT3300 Series | |
Description

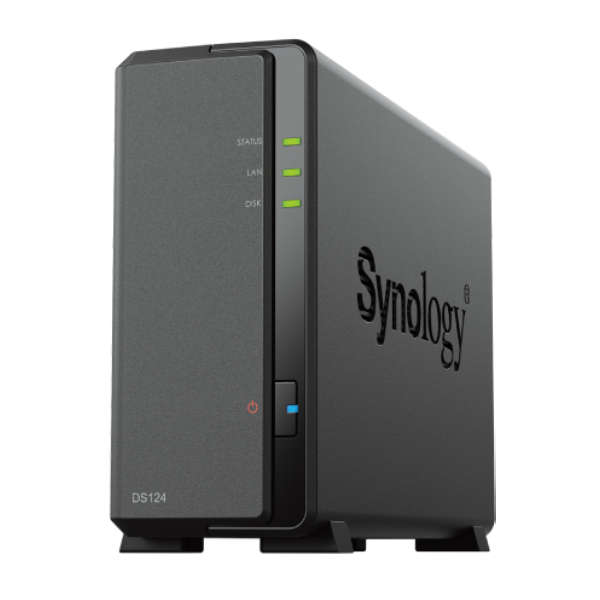

Synology DiskStation DS124 1-Bay NAS Enclosure – Compact, Efficient, and Powerful NAS for Home & Small Office
The Synology DiskStation DS124 is a compact yet powerful 1-bay NAS enclosure designed to streamline data storage, organization, and sharing for home users and small businesses. Powered by the intuitive Synology DiskStation Manager (DSM) operating system, the DS124 enables users to create a secure private cloud, centralize files from multiple devices, and access data remotely—without any subscription fees.
Powerful Performance in a Compact Design
Equipped with a 1.7 GHz Realtek RTD1619B Quad-Core processor and 1GB DDR4 RAM, the DS124 ensures smooth performance for everyday data management tasks. It's capable of handling up to 2048 user accounts and supports up to 1500 simultaneous connections, making it ideal for multi-user environments.
Flexible Storage & Connectivity
-
1 Drive Bay: Supports both 3.5" SATA HDDs and 2.5" SATA HDDs/SSDs
-
RAID Basic support for enhanced data protection
-
2 x USB 3.2 Gen 1 ports for fast file transfers and external storage expansion
-
1 x Gigabit Ethernet port for seamless network connectivity
Access, Share, and Collaborate – Anywhere
-
Cross-platform access via mobile apps (iOS/Android), web, or desktop
-
Private cloud creation with secure file sharing and collaboration tools
-
Advanced user and file management for streamlined teamwork
Energy-Efficient & Quiet Operation
Designed for silent, energy-efficient use, the DS124 includes:
-
60 x 60 mm cooling fan for optimal airflow
-
Low-noise design with just 19 dBA acoustic rating
-
Scheduled power on/off, drive hibernation, and energy-saving features to minimize power usage
Ideal For:
-
Home users looking for a reliable personal cloud storage
-
Freelancers & small teams needing secure file sharing and collaboration
-
Users managing backups, media libraries, or security camera footage
Simplify your digital life with the Synology DS124 NAS — the smart, secure, and efficient way to store and manage your data.
