ECS1112FP

EnGenius ECS1112FP Cloud-Managed 8-Port Gigabit PoE+ Switch – 130W, SFP Uplinks | Available in Bangladesh

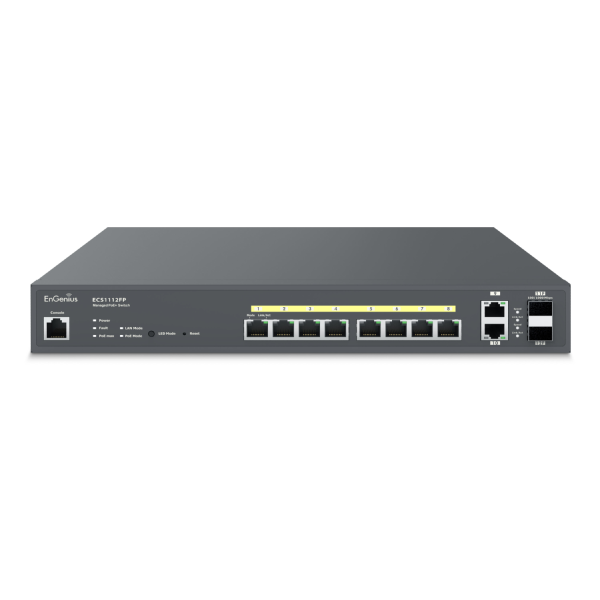

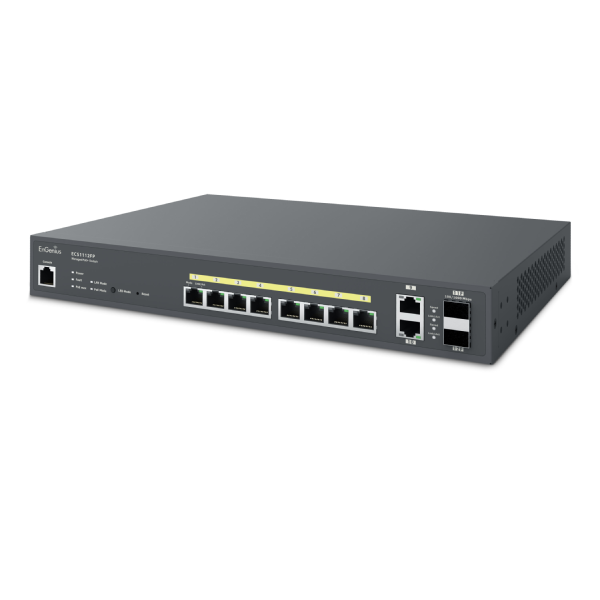

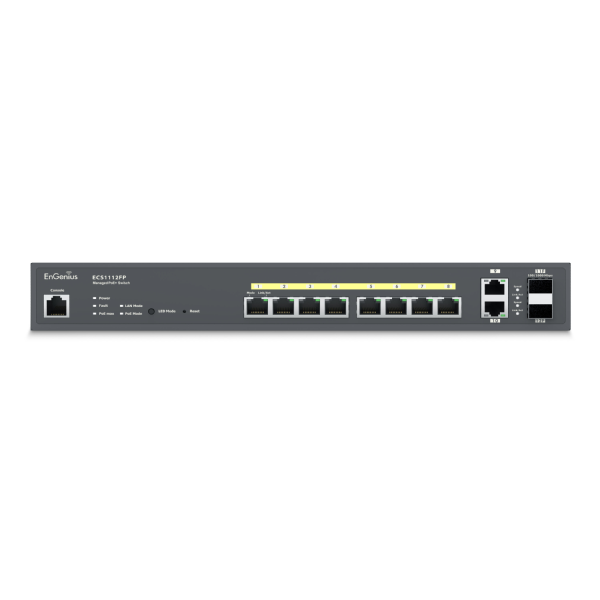

The EnGenius ECS1112FP is a high-performance, cloud-managed Gigabit switch designed to meet the networking demands of modern business environments. Featuring 8 Gigabit Ethernet ports with PoE+ support and 2 dedicated SFP slots for fiber uplinks, this switch delivers enterprise-grade functionality in a compact and cost-effective format. It is ideally suited for small to medium-sized networks that require seamless integration of PoE-powered devices such as wireless access points, IP surveillance cameras, and VoIP phones.

With a total PoE budget of 130W, the ECS1112FP supports IEEE 802.3at/af standards on ports 1 through 8, eliminating the need for additional power sources. The switch offers a non-blocking switching capacity of 24 Gbps, supported by 256MB SDRAM and 32MB flash memory, ensuring smooth and responsive network performance.

Management is streamlined through the EnGenius Cloud platform, allowing administrators to remotely monitor, configure, and troubleshoot the switch from anywhere. The ECS1112FP supports both Layer 2 and Layer 3 features, including IPv4/IPv6 static routing, 802.1Q VLAN tagging, IGMP/MLD snooping, Quality of Service (QoS) with eight priority queues, bandwidth control, ACL filtering, and port security (up to 256 entries). These features offer powerful tools for traffic shaping, application prioritization, and network access control.

The switch includes LED indicators and physical controls for real-time visibility into power status, PoE usage, fault alerts, and port activity. Its rack-mountable design ensures easy deployment within existing network infrastructure, and with an operating temperature range of 0°C to 50°C (32°F to 122°F) and up to 95% humidity tolerance, it is built for reliable operation in demanding environments.

Advanced management options include support for SNMP v1/v2c/v3, RMON, SSH, Telnet, and CLI access, offering flexible administration for IT professionals. Additional features like built-in surge protection and energy-efficient Ethernet (IEEE 802.3az) contribute to its reliability and energy savings.

Certified by CE, FCC, and IC, and backed by a one-year warranty, the ECS1112FP provides an exceptional blend of performance, manageability, and value—making it an ideal choice for organizations seeking scalable, cloud-enabled switching solutions.

Frequently Asked Questions (FAQs)

1. How many devices can be powered using PoE on the ECS1112FP?
The ECS1112FP offers PoE+ on all 8 Gigabit Ethernet ports with a total PoE power budget of 130W. The number of supported devices depends on the individual power requirements of each connected device.

2. Can the ECS1112FP be managed remotely?
Yes. The ECS1112FP is fully cloud-managed via the EnGenius Cloud platform, allowing administrators to monitor, configure, and troubleshoot the switch remotely from any location with internet access.

3. Does the ECS1112FP support Layer 3 features such as static routing?
Yes. The ECS1112FP supports Layer 3 functionality, including static routing for both IPv4 and IPv6, with support for up to 63 IPv4 and 21 IPv6 static route entries—ideal for flexible network segmentation and routing control.
