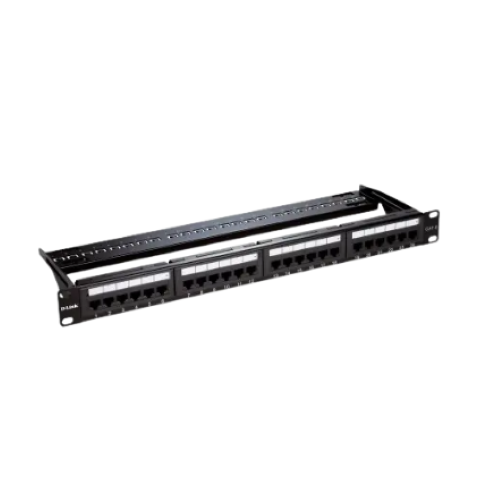

D-Link Cat6 24 Port Loaded Patch Panel

৳ 9,500 ~~৳ 10,000~~

0.00 (0)

Key Features

Operating temperature : -10oC to 60oC

Panel : SPCC

Insertion force : 20N max

Jack Life : 750 cycle’s min

IDC Life : 200 cycle’s min

10 Star Points

💵 Cash on Delivery available
📦 Available for immediate dispatch from our local warehouse
Delivery within 1–3 business days

Buy Now

Category: Accessories
Brand: D-link

Technical Info
Identification	I.D. Plate: PC
Panel	SPCC
Insertion force	20N max
Retention strength	7.7 kg between jack and plug
Operating temperature	-10oC to 60oC
Jack Life	750 cycle’s min
IDC Life	200 cycle’s min
Physical Description
Color	Black
RJ45 Jack Housing & Contact Bracket	PBT+ Glass Fiber
RJ45 Jack Contact Material	Phosphor Bronze with Nickel plated
RJ45 Jack Contact Finish	50 micro-inch Gold plated on Plug contact area
IDC Housing	PC
IDC Terminal	Phosphor Bronze with Tin plated
Jack Bracket Set	ABS
Support Bar	SSPCC
PCB	FR4
Special Features
Features	● Available in 1U and 2U. ● Six Port RJ45 modules applied. ● ID stripes for identifying port allocations. ● IDC: suitable for 22-26 AWG stranded & solid wire. ● Compatible with both 110& Krone punch down tools. ● Improved Cable Management with optional cable management bar.
Warranty Information
Warranty	12 months warranty

Description

D-Link NPP-C61BLK241 Cat6 24-Port Loaded Patch Panel Black

Professional Cat6 Termination with D-Link NPP-C61BLK241 24-Port Loaded Patch Panel

The D-Link NPP-C61BLK241 Cat6 24-Port Loaded Patch Panel is a fully pre-loaded, ready-to-use solution for structured cabling in Bangladesh. This high-performance patch panel comes with 24 integrated Cat6 RJ45 ports already installed, eliminating the need for separate keystone jacks. Perfect for data centers, offices, schools, hospitals, small enterprises, or home server rooms requiring quick deployment and reliable Gigabit Ethernet connectivity for LAN, VoIP, IP surveillance, Wi-Fi access points, and multimedia systems.

Fully Loaded with Cat6 RJ45 Ports

Equipped with 24 pre-installed Cat6 RJ45 female ports compliant with TIA/EIA-568-B standards. Each port supports frequencies up to 250MHz and delivers full Cat6 performance for 10/100/1000Mbps speeds over 100 meters when paired with quality Cat6 cables. The numbered ports (1–24) with clear labeling strips simplify cable identification, patching, and future troubleshooting.

Standard 19-Inch Rack Compatibility

Designed to EIA-310-D 19-inch rack standards with 1U height, it mounts effortlessly into standard wall-mount racks, floor-standing cabinets, or server enclosures. The durable black powder-coated steel construction offers excellent strength, scratch resistance, and a professional appearance that fits seamlessly in any IT setup.

Superior Build and Signal Integrity

Features gold-plated contacts for low insertion loss, minimal crosstalk, and excellent return loss characteristics. The 110-type IDC (Insulation Displacement Contact) punch-down terminals on the rear support fast, tool-assisted termination of Cat6 UTP cables (24-26 AWG). Rear cable management bar and tie points help keep incoming cables neatly organized and strain-free.

Easy Installation and Maintenance

No assembly required, just mount the panel, punch down your horizontal cables, and connect patch cords to the front ports. The loaded design saves time and reduces installation errors, making it ideal for both new builds and upgrades in time-sensitive projects across Dhaka or nationwide.

Durable for Long-Term Professional Use

High-quality materials ensure the panel withstands daily patching, environmental conditions, and frequent access in busy network environments while maintaining port integrity and signal quality over the years.

Trusted Quality and Availability in Bangladesh

The NPP-C61BLK241 guarantees dependable Cat6 performance and compatibility with D-Link networking solutions. CorpoShop stocks the genuine D-Link NPP-C61BLK241 Cat6 24-Port Loaded Patch Panel at competitive prices with fast delivery across Dhaka and nationwide. Shop confidently from Bangladesh's trusted e-commerce platform for authentic cabling products, secure payments, and excellent customer support.

Set up your network infrastructure faster and more reliably. Choose the D-Link NPP-C61BLK241 24-Port Loaded Patch Panel for professional, hassle-free Cat6 patching today.
