ECW220
৳ 251
ECW120
৳ 118
Key Features
2.4 GHz : Up to 23 dBm
5 GHz : Up to 23 dBm
Radio Chains : 2 x 2:2
802.11b : 1, 2, 5.5, 11 Mbps
802.11a/g : 6, 9, 12, 18, 36, 48, 54 Mbps
Share:
Specification
| Standards | ||
| Wi-Fi Standards | IEEE 802.11b/g/n (2.4 GHz), IEEE 802.11a/n/ac (5 GHz) | |
| Antenna | ||
| 2.4 GHz Antennas | 2 x 5 dBi Integrated Omni-Directional | |
| 5 GHz Antennas | 2 x 5 dBi Integrated Omni-Directional | |
| Physical Interface | ||
| Ethernet Port | 1 x 10/100/1000 Mbps (PoE) | |
| DC Jack | 1 x DC Jack | |
| Reset Button | 1 x Reset Button | |
| LED Indicators | ||
| Power | 1 x Power LED | |
| LAN | 1 x LAN LED | |
| Mesh | 1 x Mesh LED | |
| 2.4 GHz | 1 x 2.4 GHz LED | |
| 5 GHz | 1 x 5 GHz LED | |
| Power Source | ||
| PoE Input | 802.3af Input, IEEE 802.11e Compliant Source | |
| DC Adapter | 12V DC / 1A | |
| Max Power Consumption | 12W | |
| Operating Frequency | ||
| Radios | Dual-Radio Concurrent (2.4 GHz & 5 GHz) | |
| Operation Modes | ||
| Modes Supported | Managed mode: AP, AP Mesh, Mesh | |
| Frequency Radio | ||
| 2.4 GHz | 2400 ~ 2482 MHz | |
| 5 GHz | 51505250, 52505350, 54705725, 57255850 MHz | |
| Transmit Power | ||
| 2.4 GHz | Up to 23 dBm | |
| 5 GHz | Up to 23 dBm | |
| Radio Chains | ||
| Radio Chains | 2 x 2:2 | |
| MIMO Capability | ||
| SU-MIMO (2.4 GHz) | 2x2 SU-MIMO, up to 400 Mbps (VHT40) | |
| SU-MIMO (5 GHz) | 2x2 SU-MIMO, up to 867 Mbps (VHT80) | |
| MU-MIMO (5 GHz) | 2x2 MU-MIMO, up to 867 Mbps for 2 devices simultaneously | |
| Data Rates | ||
| 2.4 GHz | Max 400 Mbps (MCS0–MCS11, NSS=1–2) | |
| 5 GHz | Max 867 Mbps (MCS0–MCS11, NSS=1–2) | |
| 802.11b | 1, 2, 5.5, 11 Mbps | |
| 802.11a/g | 6, 9, 12, 18, 36, 48, 54 Mbps | |
| 802.11n | 6.5–300 Mbps (MCS0–MCS15), +25% with 256-QAM on HT40 | |
| 802.11ac | 6.5–867 Mbps (MCS0–MCS9, NSS=1–2) | |
| Radio Technologies | ||
| 802.11b | DSSS | |
| 802.11a/g/n/ac | OFDM | |
| 802.11n/ac | 2x2 MIMO | |
| Channelization | ||
| 802.11ac | VHT 20/40/80 MHz | |
| 802.11n | HT 20/40 MHz | |
| 802.11n (VHT) | VHT 40 MHz with 256-QAM on 2.4 GHz | |
| Aggregation | A-MPDU, A-SPDU | |
| Modulation | ||
| 802.11ac | BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM | |
| 802.11a/g/n | BPSK, QPSK, 16-QAM, 64-QAM | |
| 802.11b | BPSK, QPSK, CCK | |
| Max Concurrent Users | ||
| Per Radio | 128 users per radio | |
| Multiple BSSID | ||
| SSID Support | 8 SSIDs per band (2.4 & 5 GHz) | |
| VLAN Support | ||
| VLAN Tagging | 802.1q, SSID-to-VLAN, Cross-Band VLAN Pass-Through | |
| Management VLAN | Supported | |
| Spanning Tree | ||
| Protocol | IEEE 802.1d | |
| QoS | ||
| Standard | IEEE 802.11e, WMM | |
| Fast Roaming | ||
| Protocol | 802.11r/k | |
| Wireless Security | ||
| Protocols | WPA2-PSK/Enterprise, WPA3-PSK/Enterprise | |
| Extra Features | Hide SSID, Client Isolation, STA List | |
| Temperature Range | ||
| Operating | 32ºF104ºF (0 ºC40 ºC) | |
| Storage | -40 ºF176 ºF (-40 ºC80 ºC) | |
| Humidity | ||
| Operating | ≤ 90% (non-condensing) | |
| Storage | ≤ 90% (non-condensing) | |
| Dimensions & Weight | ||
| Weight | 362.8 g | |
| Width | 161.5 mm | |
| Length | 161.5 mm | |
| Height | 41.6 mm | |
| Package Contents | ||
| Device | 1 – ECW120 Cloud Managed Indoor Access Point | |
| Mount Kit | 1 – T-Rail Mounting Kit, Ceiling/Wall Screw Kit, Mounting Bracket | |
| Documentation | 1 – Quick Installation Guide | |
Description

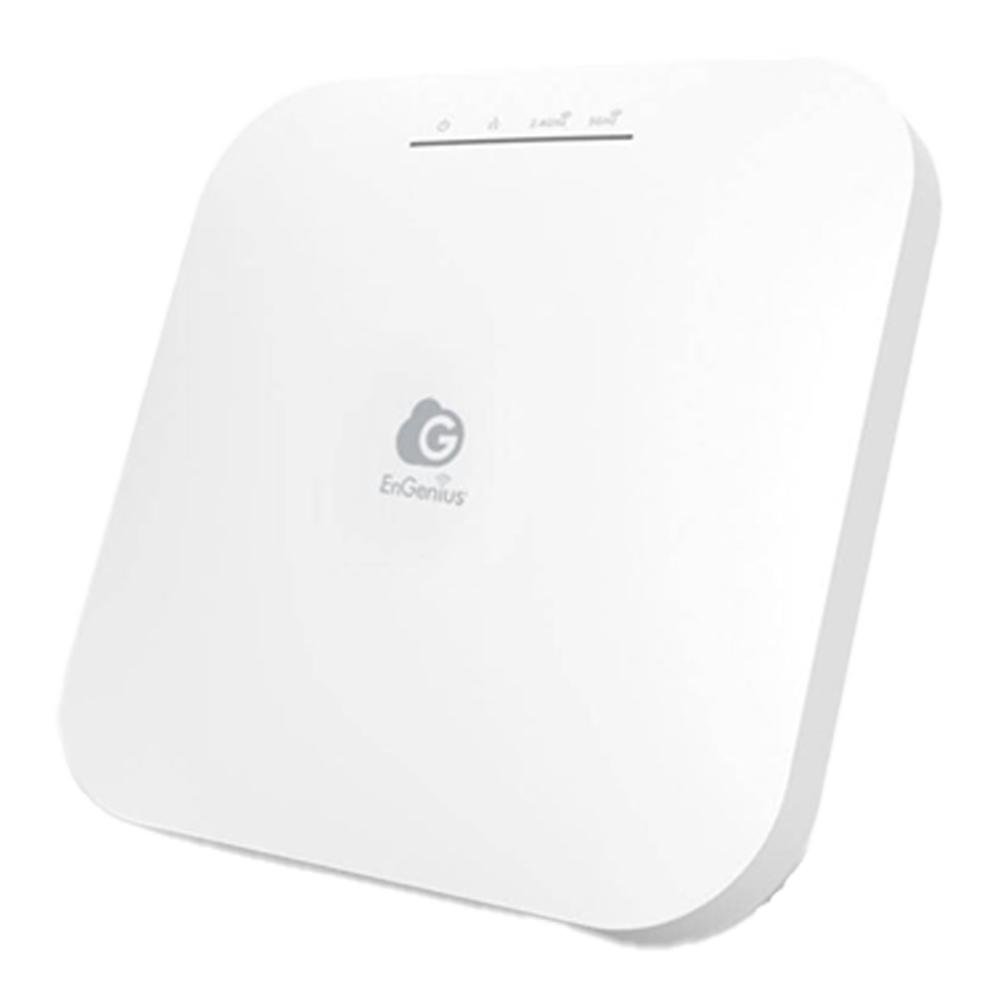

EnGenius ECW120 – Cloud-Managed 11ac Wave 2 Indoor Access Point for Fast, Scalable Wi-Fi
The EnGenius ECW120 Cloud-Managed Indoor Access Point delivers supercharged dual-band wireless performance, making it an ideal solution for small businesses, schools, retail environments, and multi-tenant spaces. Powered by 802.11ac Wave 2 MU-MIMO technology, this access point provides seamless, high-speed connections for more clients with improved reliability and coverage.
With speeds of up to 867 Mbps on the 5 GHz band and 400 Mbps on the 2.4 GHz band, the ECW120 handles high-density environments with ease, delivering smooth streaming, video conferencing, and cloud-based application access.
Enterprise Features with Flexible Cloud Management
The ECW120 offers powerful cloud-based management via the EnGenius Cloud platform, allowing IT teams and business owners to manage, monitor, and troubleshoot networks remotely and in real-time. With the EnGenius Cloud To-Go App, administrators can configure and oversee an unlimited number of APs from any location, ensuring scalable, centralized control without the need for an on-site controller.
Setup is quick and easy with app-based quick-scan device registration, and Mesh Wireless Support allows for fast deployment, optimized signal paths, and automatic self-healing for uninterrupted connectivity.
Key Features
-
Dual-band speeds: Up to 867 Mbps (5 GHz) and 400 Mbps (2.4 GHz)
-
802.11ac Wave 2 MU-MIMO technology for handling multiple clients simultaneously
-
Supports more wireless devices with better signal quality and stability
-
Remote management and monitoring through EnGenius Cloud
-
Gigabit Ethernet PoE port for flexible power and data over a single cable
-
Quick-scan device registration for fast installation
-
Unlimited AP management with the Cloud To-Go mobile app
-
Mesh Wireless Support for simplified setup, optimized signal routing, and self-healing capabilities
The EnGenius ECW120 is a powerful, easy-to-manage access point that combines advanced wireless performance with cloud scalability and simplicity, making it a smart investment for growing networks that demand reliability, speed, and flexibility.
